Top Pressure Recovery Turbine Generating System
- We have supplied more than 70 units of energy-saving system that generates electric power using gas exhausted from blast furnaces to major steelworks around the world.
- Top pressure Recovery Turbine (TRT) is the energy-saving system that generates electric power using gas exhausted from blast furnaces. TRT greatly contributes to environmental conservation from the viewpoint of reducing CO2 emissions. As the world's leading manufacturer of TRT, we offer highly reliable, durable, and power-generating products. We have delivered a total of more than 70 units of TRT to customers around the world, and we have a supply record of providing world's largest Wet TRT with a rated power of 33WM and world's largest Dry TRT with a rated power of 40MW. Our products have adopted an axial flow type, and our products are highly efficient and has large air volume. The production range varies from 2500 kW to 40,000 kW, which can accommodate a wide variety of blast furnaces. In recent years, we have delivered "Auxiliary-Device-Embedded-Packaged-TRT" that incorporates TRT and its main auxiliaries on a single baseplate.
For more information on the product, click here.
Main Features
- Optimized design developed by Mitsui
- High power generation capacity with higher efficiency reaction blades and effective conical diffusers
- A wide range of operation with all-stage adjustable stator blade mechanism
- Stable operation, increased efficienty, and long lifespan by installing turbine control valves (TCVs)
- Can handle both dry and wet gases
- High maintenance by adopting horizontal split structure
- High reliability in long-term operation
Delivery Records
-

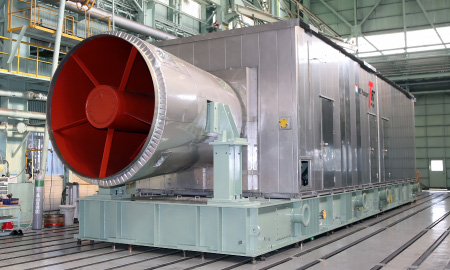

Top Pressure Recovery Turbine (Packaged Type)
